Overview
Hardness testing is a critical parameter for evaluating the strength, durability, and wear resistance of materials. Calibration of hardness testing machines ensures accurate and reliable results, helping industries maintain quality, safety, and compliance with international standards.
What is Hardness Testing
Hardness testing determines a material’s resistance to indentation, deformation, or scratching under a specific applied force. It is widely used in material selection, quality control, and research applications across various industries. Different hardness testing methods are used depending on the material and application, including Rockwell, Brinell, Vickers, and Micro Vickers testing.
Purpose of Hardness Calibration
The purpose of hardness calibration is to ensure that hardness testing machines provide accurate, consistent, and traceable measurements and also different purpose which is given below
- Ensures precise hardness measurement values
- Maintains traceability to national and international standards
- Ensures compliance with ISO 6506:2014 & 6507-2:2018, standards
- Improves product quality and consistency
- Reduces rejection, failures, and operational risks
- Enhances reliability of test results

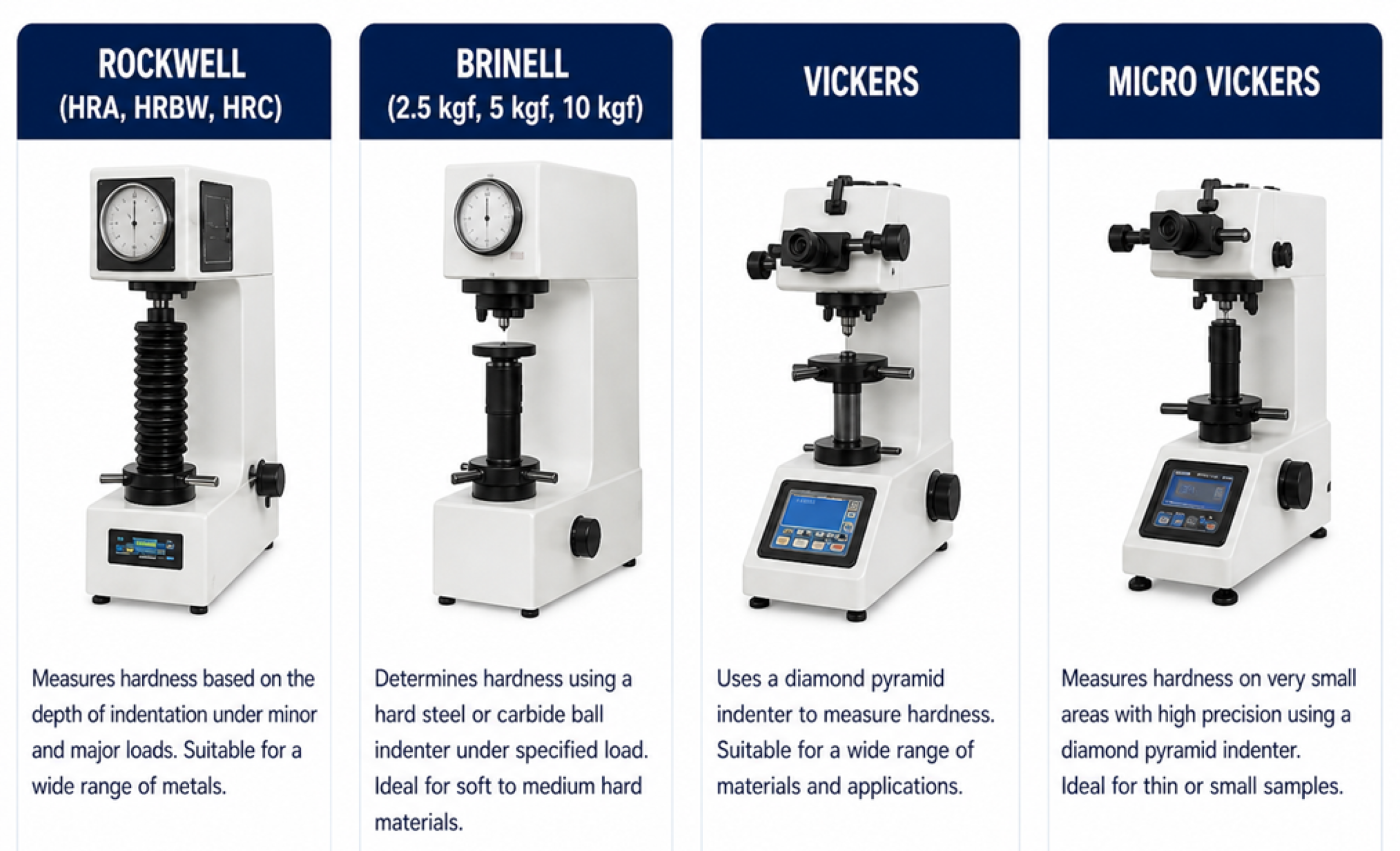

Types of Hardness Testing Machines
Rockwell Hardness Testing
Used for quick and direct hardness measurement based on depth of indentation.
- Scales: HRA, HRBW, HRC
- Suitable for metals and alloys
- Widely used in production environments
Brinell Hardness Testing
Measures hardness using a ball indenter under specified load.
- Forces: 2.5 kgf, 5 kgf, 10 kgf
- Ideal for soft to medium-hard materials
- Common in casting and forging industries
Vickers Hardness Testing
Uses a diamond pyramid indenter for precise hardness measurement.
- Suitable for a wide range of materials
- Provides highly accurate and consistent results
Micro Vickers Testing
Used for very small or thin samples with high precision.
- Ideal for coatings, thin materials, and microstructures
- Provides detailed hardness analysis at micro levels
Parameters Evaluated in Hardness Calibration
To ensure accuracy and reliability, the following parameters are evaluated:
- Accuracy of Hardness Value / Indentation
- Verification of Test Forces (Minor & Major Loads)
- Dwell Time Verification
- Indenter Geometry Verification
- Repeatability of Measurements
- Resolution and Scale Verification
- Load Application System Performance
- Overall System Compliance with Standards
